INTRODUCTION

    Anty M1212P is a waterproof free field microphone (IP64), including the preamplifier and 5 m double-shielded coaxial cable, for outdoor applications.

OVERVIEW

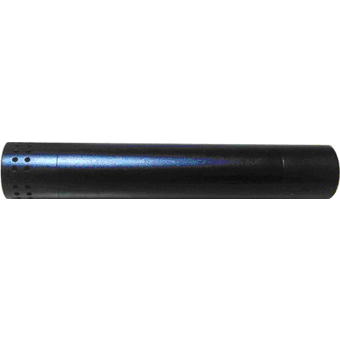

Fig 1. Anty M1212P

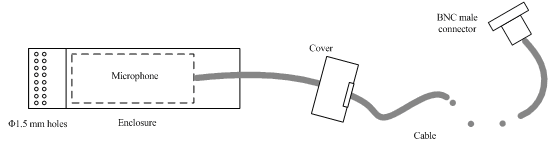

    Anty M1212P is connected a 5 m double-shielded coaxial cable with fixed connector, and it is covered by a cylinder-shaped enclosure made by aluminium alloy. At the top of the enclosure, the diaphragm of the microphone is covered by waterproof membrane and a screen with ∅1.5 mm holes is utilized for sound transmission. At the end of the enclosure, a cover with a hole can be unscrewed to put the microphone into the enclosure. The 5 m cable with a BNC male connector is passed through the hole before leaving the factory, as shown in Fig. 1.

    Served as a reference sensor, Anty M1212P is fixed by a pair of semi-circle clamps, which can slide on a revolving rod. At the end of the revolving rod, a circle panel is designed for fixed to another circle panel at one end of a support rod. The support rod is mounted on the console’s surface by a flange. Several U-shape clamps are used to fix these two circle panels. With the adjustable angle of these two panels, the revolving rod and the Anty M1212P can keep pointing upwards, regardless of the angle of the console’s surface. The installation instruction is shown in Fig. 2(a) and Fig. 3. When Anty M1212P is used as an error sensor, the connection between the semi-circle clamps and the flange is replaced by the goose neck, instead of the revolving rod and the support rod, which is shown in Fig.2 (b). The length of the goose neck connection is about 50 cm.

    When the cable of Anty M1212P needs to penetrate through a wall in case that Anty M1212P and TigerANC-II are placed in different rooms, three methods shown in Fig. 4 are recommended. Firstly, a hole with at least 16 mm diameter is recommended to be drilled on the wall, so the cable can penetrate through a wall directly. Secondly, a metal pipe with BNC female connector in each end penetrates through a wall. Finally, a panel with BNC female connector is installed on a wall in the room with the Anty M1212P mounted, and another panel with BNC female connector is installed on a wall in the room placing the conditioner. The internal connection with these two connectors is ensured by the user.

(a)

(b)

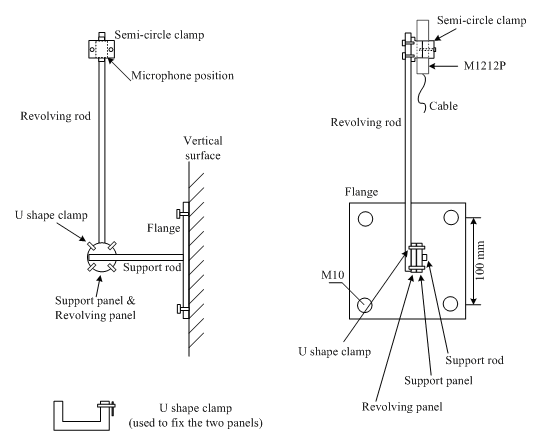

(a) With hard rods, for reference sensors

(b) With goose neck connection, for error sensors

Fig 2.The installation instruction of Anty M1212P

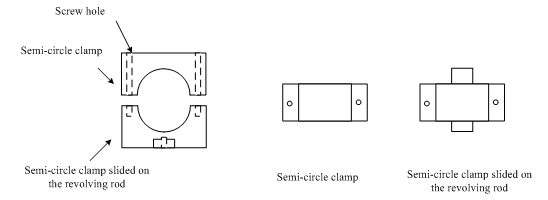

Fig 3.Schematic view of the semi-circle clamp

(a)

(b)

(c)

Fig 4.The methods that the cable penetrates through a wall

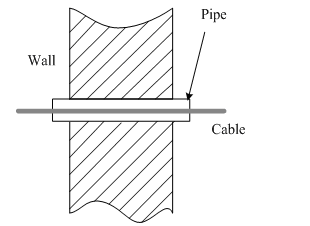

(a) A hole with at least 16 mm diameter is drilled on the wall, with or without a pipe inside it

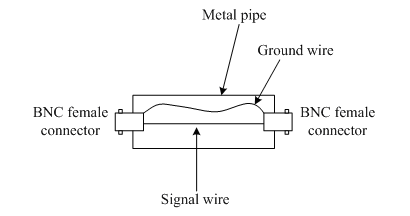

(b) A metal pipe penetrates through a wall with BNC female connector in each end

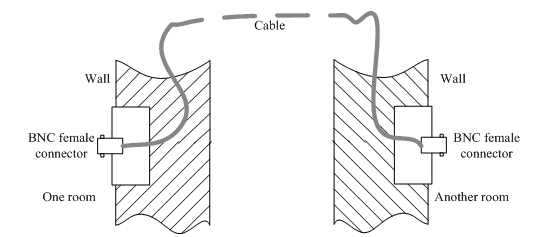

(c) A panel with BNC female connector is installed on a wall in related rooms

SPECIFICATIONS

1. Sound transmission aperture in the front of the waterproof structure

    1.5 mm diameter

2. Inner thread on the back of the waterproof structure’s shell

    M16.5 × 0.5 mm with 10 mm length, which is used to connect 5 m double-shielded coaxial cable

3. Outside diameter of the waterproof structure

    18 mm

4. Length of the waterproof structure

    90 mm

5. Weight except the connected coaxial cable

    < 150 g

6. Nominal open circuit sensitivity

    - 30 ± 2 dB (31.6 mV/Pa)

7. Frequency response

    20 Hz ~ 10 kHz (±2 dB)

8. Environment

    Free field

9. Directivity

    Omni-directionality

10. Power supply

    4 mA constant current driver

11. Output interface

    BNC male connector with 5 m double-shielded coaxial cable for the output signal and signal ground.

12. Upper limit of SPL

    130 dB for 3% distortion

13. Noise level

    30 dBA

14. Temperature range

    - 20 to +60 °C

15. Humidity range

    0 to 98% RH

16. IP rating

    IP64

NOTES

    The length of the cable can be customized.
