Anty A11
- Product description: Anty A11 is a single-axis CCLD accelerometer designed for the general measurement purposes. It can be attached with glue or wax, installed with steel stud or mounting magnet to the vibration surface i
Product introduction
INTRODUCTION
Anty A11 is a single-axis CCLD accelerometer designed for the general measurement purposes. It can be attached with glue or wax, installed with steel stud or mounting magnet to the vibration surface in normal environments.
OVERVIEW

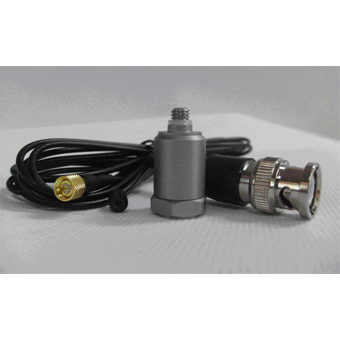

Fig.1 Anty A11 accelerometer
Anty A11 can be utilized directly for the equipments supporting the CCLD sensors. For equipments which only receive line-in input, a signal conditioner such as Anty MC16 should be connected to Anty A11 to supply the required working current and output the measured voltage signal. To connect Anty A11 and the post-equipments through a wall in case that they are settled in different rooms, it is suggested to drill a hole or embed a pipe on the wall, and carry the cable directly through the hole/pipe as shown in Fig.2 (the inner diameter of the hole/pipe is recommended to be larger than7 mmfor the included cable). An alternative method is to prefabricate internally connected sockets on both sides of the wall. The socket at the Anty A11 side is recommended to be BNC female.

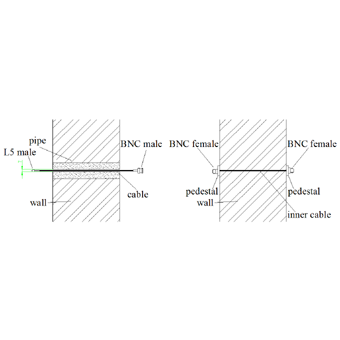

Fig.2 Installation instruction of Anty A11 cable through a wall
SPECIFICATIONS
1. Sensitivity
106.0 mV/g
2. Frequency range
0.5 Hz ~ 8000 Hz
3. Maximum Operational Level
±50 g(peak)
4. Maximum Shock Level
±3000 g(peak)
5. Non-linearity
≤ 1%
6. Transverse sensitivity
≤ 5%
7. Mounted Resonance Frequency
29 kHz
8. Output impedance
<100 W
9. Temperature
- 40 °C~ +120 °C
10. Operating Voltage
+18 V ~ +28 V
11. Operating current
2 mA ~ 10 mA
12. Dimension
∅13 mm ×26 mm(H)
13. Weight
18 gram
14. Housing material
Stainless steel(1Cr18Ni9Ti)
15. Mounting
M5 ×5 mmthreaded hole
Note:
A2.0 mdouble-screened cable fitted with L5 and BNC connectors and a steel M5 stud with flange are included. For special applications, the cable and the connectors need to be customized and it is suggested the maximum cable length should not exceed20 m.
