INTRODUCTION

    Anty L18-1 is a subwoofer designed for outdoor applications where high efficiency, ultra low frequency response and faithful reproduction are required. The loudspeaker offers a high power handing capacity of 600W and a uniform frequency response from 35Hz to 500Hz.

OVERVIEW

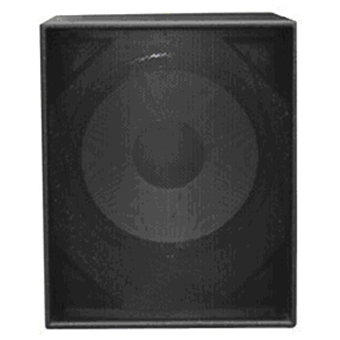

Fig. 1 Anty L18-1

(a) (b)                          (c)

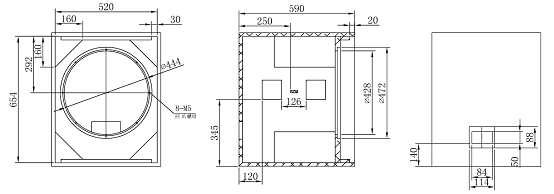

Fig. 2 Physical dimension of Anty L18-1 (a) Front view (b) Side view (c) Back view

SPECIFICATIONS

1. Rated Power

    600 W

2. Frequency range

    35~500 Hz (±3 dB)

3. Sensitivity

    101 dB (1W &1m& 35 Hz~500 Hz)

4. Impedance

    8 W

5. Dimension

    550 mm(W) ×690 mm(H) ×590 mm(D)

6. Enclosure

    IP24, Dust tight and protected against splashing water

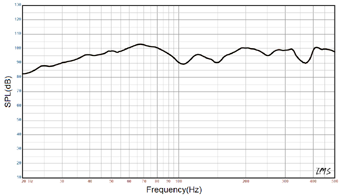

7. Frequency response

Sound pressure level1 maway (Half space & 1W input)
