INTRODUCTION

Anty FC16 is a 16-channel low-pass filter with customizable cut-off frequency. It can be utilized to construct smooth signals from the output of the digital-to-analog converters (DAC) or to act as the anti-alias filters in front of the analog-to-digital converters (ADC).

OVERVIEW

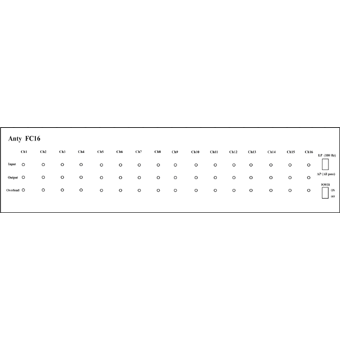

Fig. 1. Schematic diagram of the front panel.

Fig. 2. Schematic diagram of the back panel.

Each channel of Anty FC16 is formed by an 8-order Butterworth filter with 48 dB/Oct stop-band attenuation, and the configurable low pass cutoff frequencies can be customized.

The package of Anty FC16 is designed as a standard 3U rack unit, which makes it easy to be mounted in a 19-inch rack. The dimensions of Anty FC16 is depicted in Fig. 3, where the length unit is millimeter.

Fig 3. Dimensions of Anty FC16

SPECIFICATIONS

1. Dimensions

483 mm (W) × 133mm (H) × 280 mm (D)

2. Weight

< 4 kg

3. Input plug

16 × BNC female connector for the input signal and signal ground

4. Output plug

16 × BNC female connector for the output signal and signal ground

5. Alternative output plug

16 × XLR male connector for the positive output signal, negative output signal and signal ground

6. Cut-off frequency setup

Customized

7. Gain

1

8. Noise level

< 1 mVrms output noise

9. Frequency range

Customized (±3 dB)

10. Maximum input voltage

2.8 Vrms

11. Input impedance

4.7 kΩ

12. Input mode

Line voltage input

13. Signal indicator

Input signal indicator, output signal indicator, overload indicator

14. Power

~ 220 V / 50 Hz (±10%)

NOTES

Customized coaxial cable is recommended. For environments with strong electromagnetic interference, customized double-shielded cable and case ground are recommended.
