TigerANC-II Lite (Out of store)
- Product description: TigerANC-II Lite is a portable standalone active controller without the need of a host PC. All control parameters can be set through an embedded touch screen where the control status also can be viewe
Product introduction
INTRODUCTION
TigerANC-II Lite is a portable standalone active controller without the need of a host PC. All control parameters can be set through an embedded touch screen where the control status also can be viewed. The hardware mainly includes a high-end float-point DSP, which is in charge of the core control algorithms, and an ARM chip, which is in charge of the human-machine interface. The controller also benefits from the ultra-low latency of AD/DA conversion, which makes it possible to realize a compact ANC system for many latency critical applications.
OVERVIEW

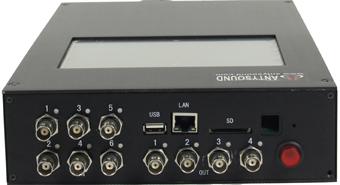

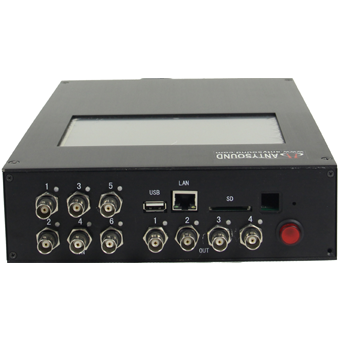

Fig 1. TigerANC-II Lite
TigerANC-II Lite is an off-the-shelf equipment which can help users establish an active noise control (ANC) system efficiently with other peripheral devices provided by Antysound. TigerANC-II Lite supports up to 4-channel centralized control and 3-channel decentralized (mono-channel) control.
SPECIFICATIONS
1. Size
210 mm (W) × 62mm (H) × 310 mm (D)
2. Weight
2.15 Kg
3. Number of Channels
l 6 analog input channels (reference + error)
l 4 analog output channels
l Up to 3 reference signals (from software generated signals or from analog input channels)
l Up to 4 control signals
4. Adaptive Algorithms
l Gradient descent feed-forward control using the FXLMS algorithm (wideband control)
5. Control Filter Types
l FIR (wideband control)
6. Maximum Tap Length for Control Filters
Depends on the number of channels used
7. Adjustable Algorithm Parameters
l Cancellation path number
l Cancellation path transfer function taps
l Cancellation path identification signal strength
l Cancellation path identification stepsize
l Control filter number
l Control filter taps
l Control filter stepsize
l Control filter leakage coefficient
8. Cancellation Path System Identification
l Adaptive FIR model with random noise as the excitation signal
9. Sampling Rates
l There are 10 choices of sampling rates varying from 125 Hz to 64 kHz, with optional anti-aliasing low-pass filter
10. Input and Output Filtering
The white noise generated by the internal signal generator can be high-pass, low-pass and band-pass filtered with 10 pre-defined different filters. Users can load their own filter parameters through a USB flash disk.
11. Analog Inputs
l Signal maximum is 10 Vpp
l AC coupled inputs
12. Analog Outputs
l Signal maximum is 5 Vpp
l AC coupled outputs
13. Signal Generator
l 6 sine wave generators
l 1 white noise generator
l Frequency range 0 Hz to 32 kHz
l Generator signal can be set as the sum of the white noise and different sine waves
14. Saving Data
System data can be saved to a USB flash disk
15. Signal Display
l Identification signal level
l Modeling error level
l Reference signal level
l Error signal level
l Cancellation path filters
l Control filters
16. Cables
Customized coaxial cable is recommended. For environments with strong electromagnetic interference, customized double-shielded cable is recommended.
NOTES
The noise control algorithms can be customized. For details, please contact sales@antysound.com.
