INTRODUCTION

Anty PM02 is a 2-channel all-in-one signal conditioner and power amplifier. The signal conditioner components work as an interface between the transducer outputs and the measurement device or control device. It can supply the system with signal amplification, filtering and powering of transducers. The power amplifier components are designed for low power output applications.

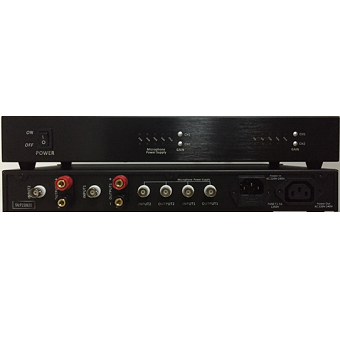

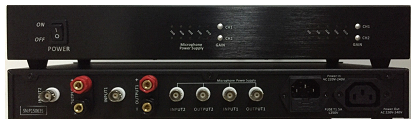

OVERVIEW

SPECIFICATIONS

1. Size

483 mm(W) × 48 mm(H) × 160 mm(D)

2. Weight

3.5 kg

3. Input plug

2 × BNC for signal conditioner

2 × BNC for power amplifier

4. Output plug

2 × BNC for signal conditioner

2 × Binding Post for power amplified

5. Gain

20dB/40dB/46dB, for signal conditioner

0dB/5dB/15dB, for power amplifier

6. Frequency range

20 Hz to 20 kHz (±0.5 dB)

7. Maximum input voltage

6 Vrms for signal conditioner

10 Vrms for power amplifier

8. Input impedance

4 Ω

9. Power

~220 V/50 Hz AC
