INTRODUCTION

    Anty PA-1010s is a professional stereo power amplifier designed for large power output applications. Three operation modes, 8 W stereo, 4 Wstereo and 8 W bridge are supported, and the maximum output power can reach 3320 W. Special cooling designs and protection are utilized to ensure the reliability of Anty PA-1010s.

OVERVIEW

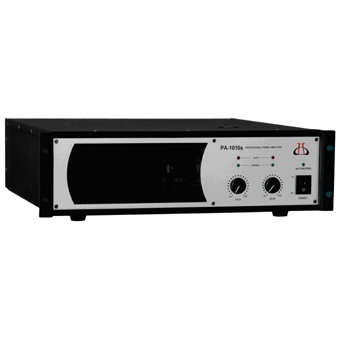

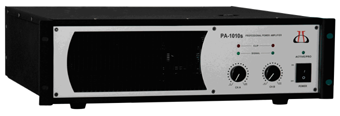

Fig. 1 Anty PA1010s

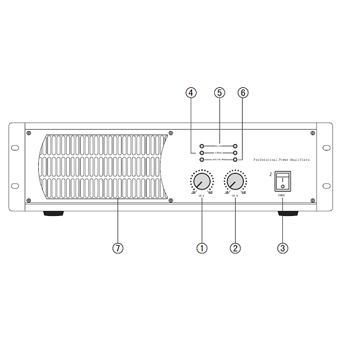

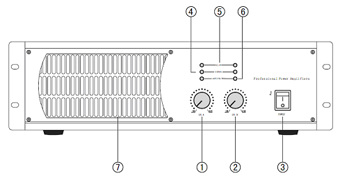

Fig. 2 Front panel of Anty PA1010s

In Fig. 2:

1 CHA sound channel control potentiometer

2 CHB sound channel control potentiometer

3 Power switch

4 Signal level indicator light

5 CLIP indicator light

6 Power indicator light and protection indicator light

7 Heat dissipation air outlet

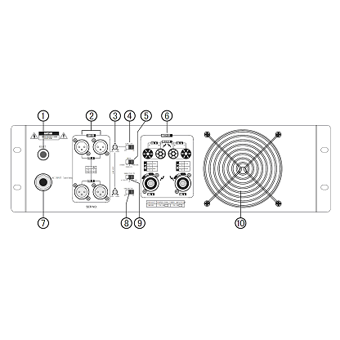

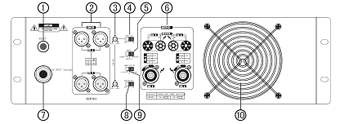

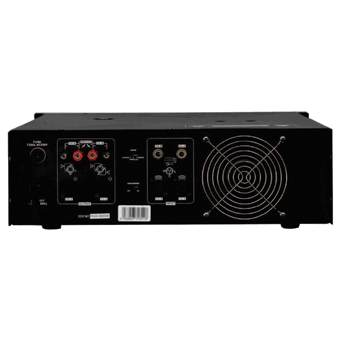

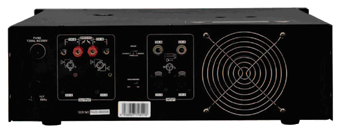

Fig. 3 Rear panel of Anty PA1010s

In Fig. 3:

1 Overload protector

2 Signal input interface

3 CHA/CHB Low-frequency filer and frequency regulator

4 Full frequency/low frequency filter selection switch

5 Selection switch of work mode

6 Signal output interface

7 Power lead ~220 V / 50 Hz

8 Grounding switch

9 Selection switch of sensitivity

10 Heat dissipation fan inlet

SPECIFICATIONS

1. Rated Power

    2 × 1010 W / 2 × 1660 W / 3320 W for 8 W stereo / 4 W stereo / 8 W bridge

2. Protection

    DC protection

    High temperature protection

    Current inrush protection

    Input overload protection

    Output overload protection

    Soft startup protection

3. Frequency range

    20 Hz ~ 20 kHz (±0.5 dB)

4. Sensitivity

    0.775 V / 1.0 V / 1.44 V (10%, 8 W stereo & 1 kHz)

5. Operation mode

    Stereo / Parrallel / Bridge

(a)                    (b)                        (c)

Fig. 4 Cofiguration of the operation modes (a) stereo (b) parrallel (c) bridge

6. Total harmonic distortion

    < 0.06% (1 kHz & -10 dB)

7. Input Impedance

    20 kW (balanced)

    100 kW (unbalanced)

8. S/N ratio

    ³ 97 dB (A-weighted, 8 W)

9. Damping factor

    > 450 (1 kHz & 8 W)

10. Power supply

    ~ 220 V / 50 Hz (±10%)

11. Power consumption

    5300 W

12. Dimension

    482 mm (W) ×132 mm(H) ×444 mm(D)

13. Weight

    31.5 Kg
