INTRODUCTION

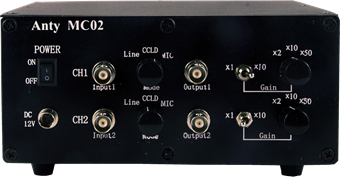

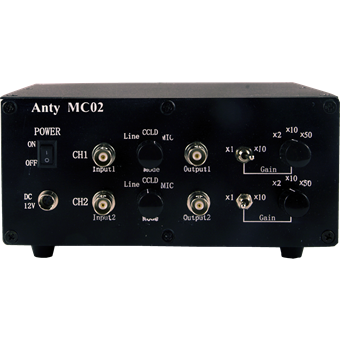

    Anty MC02 is an 2-channel low-noise signal conditioner. It works as an interface between the transducer outputs and the measurement device or control device. It can supply the system with signal amplification, filtering and powering of transducers.

OVERVIEW

    Anty MC02 is designed for general signal conditioning amplifiers for various application with 3 selective input modes. Line input is designed for voltage input, 4 mA constant current line driver is designed for CCLD analogue input by powering CCLD measurement microphones and accelerometers. 5 V constant voltage is designed for powering condenser microphones. The frequency response covers from 10 Hz to 20 kHz with selective gain 2/10/20/50/100/500.

SPECIFICATIONS

1. Size

    180mm (W) × 80 mm (H) × 145 mm (D)

2. Weight

    1.3 kg

3. Input plug

    2 × BNC

4. Output plug

    2 × BNC

5. Input mode setup

    2 × Knob for Line in, CCLD and MIC

6. Gain setup

    2× Knob for 2, 10 and 50, 2 × Switch for 1 and10

7. Gain

    2/10/20/50/100/500, setup by knob value multiplying by switch value

8. Noise level

    < 1 mVrms output noise for gain 100

9. Frequency range

    10 Hz to 20 kHz (±1 dB)

10. Maximum input voltage

    2.8 Vrms

11. Input impedance

    10 kΩ

12. Input mode

l Line: line input for voltage

l CCLD: 4 mA constant current line drive for CCLD analogue input by powering CCLD measurement microphones and accelerometers.

l MIC: 5 V constant voltage for powering condenser microphones.

13. Power

    12 V DC, regulated 2 A, tolerance ±20%

NOTES

    Similar to Anty MC02, Anty MC08 is a 8-channel low noise signal conditioner. The size of Anty MC08 is 225 mm (W) × 120 mm (H) × 190 mm (D). The weight of Anty MC08 is 2.5 kg.
